Hinged Belt Conveyors are used for effectively remove metal chips in Machine tools, It incorporates hinged steel belt moving inside a metal casing. These conveyors are designed to handle long, curly, bushy chips - dry, wet or hot that are generated during turning, boring, drilling and other similar metal cutting operations. The hinge belt surface can be plain, perforated or dimpled in accordance with application requirement.
|
|
Model |
DSLC 15H |
DSLC 25H |
DSLC 40H |
DSLC 60H |
DSLC 90H |
Pitch |
38.1mm |
63.5mm |
101.6mm |
152.4mm |
228.6mm |
Application |
Carry long, curly, bushy chips wet, dry or hot Useful in machining centers, turning, milling, boring and special purpose machines with a driving power of upto 50 KW. |
Carry long, curly, bushy chips wet, dry or hot. Useful in machining centers, turning, milling, boring and special purpose machines with a driving power of upto 50 KW. |
stamping / sheet metal press shops to handle scrap at a moderate capacity |
stamping/ sheet metal press shops where the scrap generation rate exceeds the handling capacity of a 4 pitch |
Automotive press scrap |
Chip Carrying Capacity |
As per application |
Type of belt
|
plain, perforated, dimpled, combo
|
Design
|
Customize/Standard
|
Material
|
SS,MS
|
Inclination Angle |
60° /45°
|
Limitation
|
Not carrying Swarf, Fines, Cast iron
|
Colour
|
Custom /Standard( Grey/Blue/Black/White)
|
|
Magnetic Type Chip Conveyor
- Designed to convey ferrous materials which produces small chips & fines
- In this conveyor the top plain sheet remain in stationary, and small ferrous chips are evacuated by powerful magnets rotating underneath the belt
- Limitation of this conveyor is heavy chips
- Scrap or parts can damage the sheet metal belt
Model
|
DSLC 6M
|
Pitch
|
15.875 mm |
Application
|
Hobbing, gear cutting, shaving
|
Chip Carrying Capacity
|
As per application
|
Design
|
Customize
|
Material |
Ferrous material
|
Type of chip
|
Fines / swarf / sludge / small / broken chips Small parts (screws, bolts, etc)
|
|
Scraper Type Chip Conveyor
These are designed for handling small, powdery chips such as cast iron and find application in machines/metal cutting operations that generate small/powdery chips such as milling. They can handle wet or dry chips. Conveyor carry fine chips and swarf, the scraper belt moves in reverse direction which carry the chips and dragging chips up the incline to the discharge end.
Model |
DSLC 15S |
DSLC 25S |
Pitch |
38.1mm |
63.5mm |
Application |
Fines / swarf / small / broken chips Light chip Loads
|
Fines / swarf / small / broken chips Heavy chips Loads |
Chip Carrying Capacity |
Design as per application |
Design
|
Customize / Standard
|
Material
|
cast iron, aluminum, brass
|
Inclination Angle
|
60° /45°
|
Limitation |
Inlet height must be 120 mm or more
|
Colour
|
Custom / Standard ( Grey / Blue / Black / White )
|
|
Screw / Coil Conveyor
- Screw conveyors are used to convey the material continuously with the help of a rotating helical screw blade (known as flights) by shear and tumbling effect inside a U shaped trough or a round tube. They are generally used for handling fines of small curly crushed chips.
- Applications: Aluminum / Brass / Steel Small / broken chips
Scraper Conveyor With Drum Filter
MODEL 15SD
It is combination of scraper conveyor and filter drum that effectively handles small chips arising out of cutting operations such as milling. The separation of fine metal particles from coolant is effected by the rotating filter drum of finely woven stainless steel mesh. The drum is driven by scraper chain and hence no separate drive is required and also no consumable filter media used. The drum is continuously cleaned by a pressurized backwash system. Coolant cleaning of upto 100 microns is achievable by this compact conveyor cum separator. The unit is custom-built to suit individual machine requirements and more drums can be added depending on coolant flow rate.
Dual Type Chip Conveyor With Drum Filter
The Dual type chip conveyor with drum filter provides outstanding chip removal and coolant cleaning for your machine tool. With the capability to handle nearly any chip type and material, while providing coolant cleanliness to 50 micron nominal, this systems are well suited for general purpose machining. Tank cleanout periods can be extended from monthly for standard chip conveyors to annually for this systems, reducing downtime and maintenance costs.
The Dual type chip conveyor with drum filter system can handle most chip types and materials and includes a permanent self-cleaning media drum separates fines from the coolant to 50 micron nominal.
- Integrated media-free backwash system eliminates filter replacements, clogged screens and pumps
- Plug and run packages available for many machine tools to ease installation
- Hardened components option available for applications involving abrasive materials

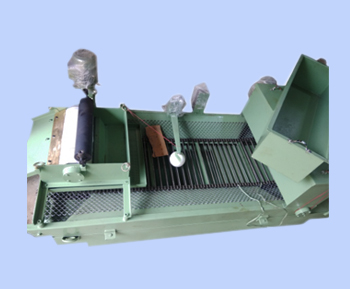

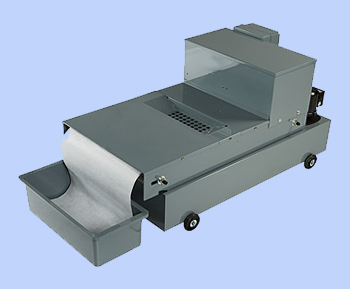

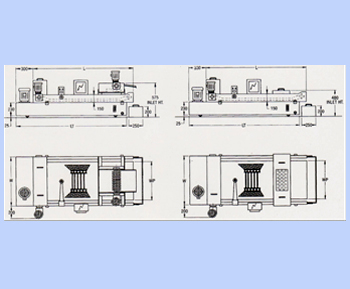

Paper Band Filtration System
This entire unit is fixed on a coolant tank with a pump to supply coolant to the machine. The filtering paper is spread over an endless steel mesh conveyor which is connected to gear motor. This uniquely designed conveyor prevents overflowing of liquid and the full width of the filtering paper is used. The movement of the filter paper is controlled by a float switch which actuates the gear motor. This is a Perfect solution for cleaning of coolant emulsions and cutting oil.
Application:
- Grinding, Drilling, Honing, Polishing and Washing.
Advantages:
- Highly efficient way of filtration guarantees fine finish, dimensional accuracy, increased tool life.
- Keeps your machine clean and reduces costly machine down time for periodical cleaning.
- Avoids bacterial growth and wastage of expensive coolants.
- Since the complete filtration system is automatic, No manual attention is needed.
- Where heavy stock removal increases the temperature of the coolant, this system of filtration due to sufficient exposure to air helps to control the same.
MODEL |
CAPACITY |
CUTTING OIL |
EMULSION |
L |
LT |
W |
WP |
TANK CAPACITY |
PB-DSLT |
50 LPM |
35 LPM |
50 |
1100 |
1300 |
550 |
450 |
150 LTRS |
PB-DSLT |
65 LPM |
45 LPM |
65 |
1200 |
1400 |
800 |
700 |
200 LTRS |
PB-DSLT |
100 LPM |
65 LPM |
100 |
1600 |
1800 |
800 |
700 |
300 LTRS |
PB-DSLT |
150 LPM |
100 LPM |
150 |
1600 |
1800 |
1000 |
900 |
375 LTRS |
PB-DSLT |
200 LPM |
130 LPM |
200 |
2000 |
2200 |
1000 |
900 |
440 LTRS |
PB-DSLT |
300 LPM |
200 LPM |
300 |
2300 |
2500 |
1000 |
900 |
575 LTRS |
PB-DSLT |
400 LPM |
250 LPM |
400 |
200 |
2200 |
1170 |
1370 |
750 LTRS |
|

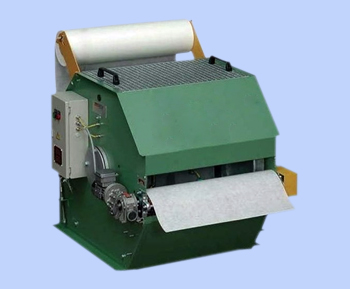

Compact Band Filter
- Compact band filters well suited for high flow rate and dirt content.
- specially designed for space efficiency and require only 20% of the space as compared to other conventional compact band filters
- Clarity level : 75 microns to 3 microns
- By using different grades of filter papers, the desired filtration effects can be achieved.
- The optimum sealing between honeycomb mesh, drum assembly and filter paper completely eliminates any fear of contamination.
MODEL |
CAPACITY |
INLET HEIGHT |
FILTER PAPER WIDTH |
DRUM DIAMETER |
TANK CAPACITY |
CB-DSLT |
60 LPM |
445 LPM |
600 MM |
490 MM |
200 LTRS |
CB-DSLT |
100 LPM |
445 LPM |
700 MM |
490 MM |
300 LTRS |
CB-DSLT |
150 LPM |
445 LPM |
800 MM |
490 MM |
450 LTRS |
CB-DSLT |
200 LPM |
570 LPM |
800 MM |
640 MM |
600 LTRS |
CB-DSLT |
300 LPM |
570 LPM |
1000 MM |
640 MM |
900 LTRS |
CB-DSLT |
500 LPM |
720 LPM |
1000 MM |
840 MM |
1500 LTRS |
CB-DSLT |
1000 LPM |
770 LPM |
1500 MM |
940 MM |
2000 LTRS |
CB-DSLT |
5000 LPM |
970 LPM |
1500 MM |
1340 MM |
3000 LTRS |
|

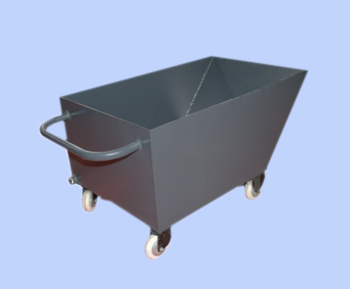

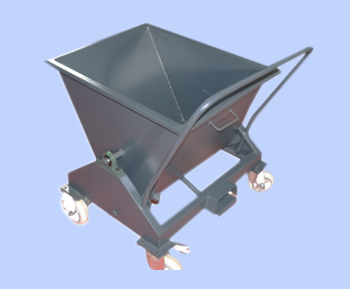

Chip Bin
Metal chips can be extremely sharp and this creates a safety problem as they can cause serious injuries, if not handled correctly. Stop handling chips manually.
STANDARD SIZE |
VOLUME |
LENGTH MM |
WIDTH MM |
HEIGHT MM |
HANDLE HEIGHT |
WHEEL SIZE INCH |
DSLC TCB600 |
0.10 |
604 |
580 |
600 |
590 |
4" |
DSLC TCB650 |
0.10 |
604 |
580 |
650 |
638 |
4" |
DSLC TCB700 |
0.127 |
630 |
580 |
700 |
690 |
4" |
DSLC TCB750 |
0.127 |
630 |
580 |
750 |
738 |
4" |
DSLC TCB800 |
0.163 |
722 |
580 |
800 |
800 |
4" |
DSLC TCB850 |
0.163 |
722 |
580 |
850 |
839 |
4" |
DSLC TCB1071 |
0.342 |
868 |
800 |
1071 |
963 |
6" |
DSLC TCB1121 |
0.342 |
868 |
800 |
1121 |
1013 |
6" |
|

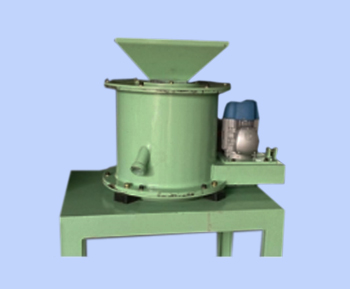

Chip Centrifuge
A device that is used for separating liquid, cutting oil etc., from a mixture of metal chips and larger pieces of metal. Chip Centrifuge becomes progressively more important in today's machine shops. Environmental laws limit the maximum residual coolant that can be retained in transported swarf and economically, reclaiming expensive coolant and the increased sales value of relatively dry chips are of vital importance.
Advantages:
- Adjustable speed to meet individual requirements
- Minimum number of parts, resulting in smooth running and no maintenance
- Heat treated, one-piece long life bow
- Superb de-oiling
- Small and compact
- Trouble free performance
- Maximum oil reclaiming from chips
CAPACITY AND PERFORMANCE:
MODEL |
DT-50 |
DT-150 |
DT-500 |
DT-1000 |
STEEL |
50LTR/HR OR 50KG/HR |
150LTR/HR OR 50KG/ HR |
500LTR/HR OR 500KG/HR |
1000LTR/HR OR 1000KG/HR |
CAST IRON |
40LTR/HR OR 50KG/HR |
125LTR/HR OR 150KG/HR |
425LTR/HR OR 500KG/HR |
800LTR/HR OR 1000KG/HR |
ALUMINIUM |
50LTR/HR OR 18KG/HR
|
150LTR/HR OR 50KG/HR |
500LTR/HR OR 170KG/HR |
1000LTR/HR OR 350KG/HR |
|
AMOUNT OF COOLING/CUTTING AGENT RECLAIMED :
MATERIAL/COOLANT |
PERCENTAGE OF EXTRACTION |
MATERIAL/COOLANT |
PERCENTAGE OF EXTRACTION |
STEEL/OIL |
98.5% |
CAST IRON/ EMULSION |
98.9% |
STELE/EMULSION |
99.0% |
ALUMINIUM/OIL |
96.5% |
CAST IRON/OIL |
97.0% |
ALUMINIUM/ EMULSION |
97.5% |
|

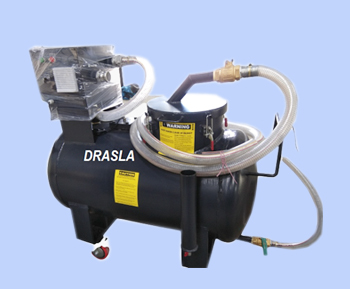

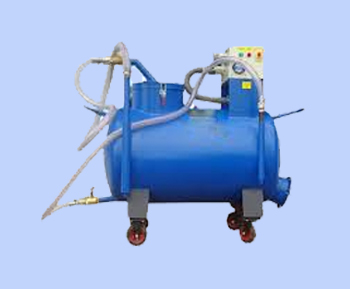

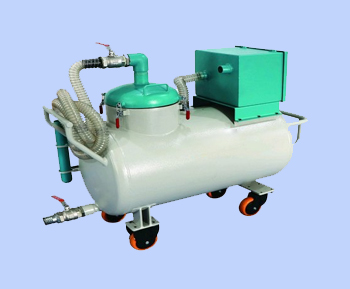

Sump Cleaner
A sump cleaner is a specialized unit for cleaning the coolant sumps of machine tools. The sump contents usually consist of coolant & solids. The solids consist of metal chips & swarf. In just a few minutes, a sump cleaner will pick up everything in the sump- fluid, as well as solids. The filter separates the solids from the fluid. Filtered coolant is returned to the machine tool sump or transported for additional processing.
SPECIFICATION :
- Adjustable speed to meet individual requirements
- Minimum number of parts, resulting in smooth running and no maintenance
- Heat treated, one-piece long life bow
- Superb de-oiling
- Small and compact
- Trouble free performance
- Maximum oil reclaiming from chips
CAPACITY AND PERFORMANCE:
MODEL |
DT-50 |
DT-150 |
DT-500 |
DT-1000 |
STEEL |
50LTR/HR OR 50KG/HR |
150LTR/HR OR 50KG/ HR |
500LTR/HR OR 500KG/HR |
1000LTR/HR OR 1000KG/HR |
CAST IRON |
40LTR/HR OR 50KG/HR |
125LTR/HR OR 150KG/HR |
425LTR/HR OR 500KG/HR |
800LTR/HR OR 1000KG/HR |
ALUMINIUM |
50LTR/HR OR 18KG/HR
|
150LTR/HR OR 50KG/HR |
500LTR/HR OR 170KG/HR |
1000LTR/HR OR 350KG/HR |
|
SPECIFICATION :
TANK CAPACITY |
300 LTR TO 1000 LTR |
SUCTION RATE UPTO |
300 LPM TO 1000 LPM |
DISCHARGE RATE UPTO |
300LPM TO 1000 LPM |
SUCTION HOSE
| 2" |
DISCHARGE HOSE |
51-1/2" |
FILTERATION LEVEL |
10 MICRON TO 150 MICRON
|
|
ADVANTAGES :
- Reduce machine down time
- Increase the efficiency of machine
- Increases coolant sump life
- Make possible to reuse coolant after tank cleaning, Thus save cost
- Minimizes fog, mist or smoke filled atmosphere
- Resolve problem of holding part tolerances or dimensions, surface finish
- Minimizes health problems like breathing difficulties for operator
- Improved employee morale helps to increase productivity
- Filter the sludge and chips from the tank

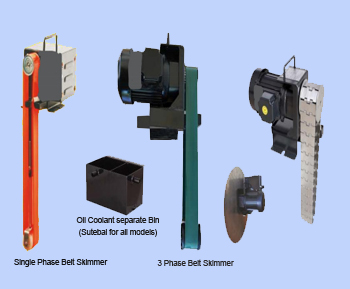

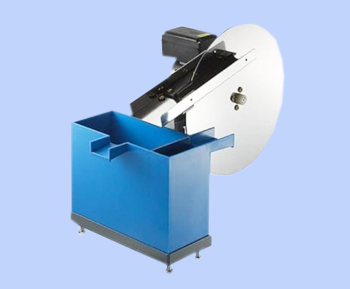

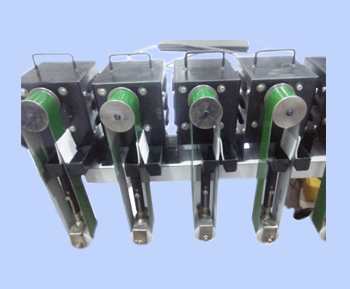

Oil Skimmer
An oil skimmer is a mechanical device that separates oil or particles floating on a liquid surface and are most commonly used for oil spill remediation, as a part of oily water treatment systems, removing oil from machine tool coolant and removing oil from aqueous parts washers.
Used on all CNC machines, conventional machines, washing machines, electro plating grinding machines etc. where floating oil is to be extracted for better linfe of coolant
SPECIFICATION :
TANK CAPACITY |
300 LTR TO 1000 LTR |
SUCTION RATE UPTO |
300 LPM TO 1000 LPM |
DISCHARGE RATE UPTO |
300LPM TO 1000 LPM |
SUCTION HOSE
| 2" |
DISCHARGE HOSE |
51-1/2" |
FILTERATION LEVEL |
10 MICRON TO 150 MICRON |
|
ADVANTAGES :
- Used on all CNC machines, conventional machines, washing machines, electro plating grinding machines etc. where floating oil is to be extracted for better life of coolant
- Minimum number of parts, resulting in smooth running and no maintenance
- Heat treated, one-piece long life bow
- Superb de-oiling
- Small and compact
- Trouble free performance
- Maximum oil reclaiming from chips

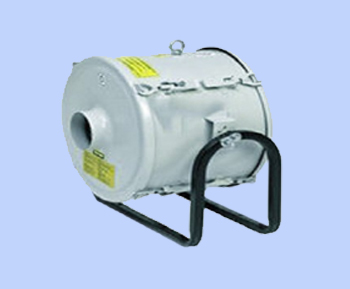

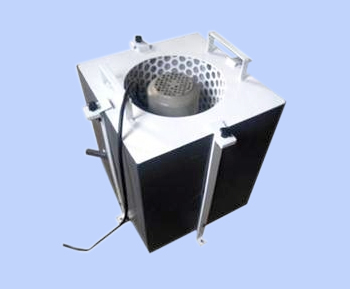

Mist Collector
The Oil Mist Collector (Filter mist) is specifically utilized in various industrial processes to clean the working ambiance by complete sucking of oil mist. The mist collector offered by us is the best available package for the employee and environmental protection in industrial premises.
FEATURES :
- High collecting efficiency due to localized mist collection in the surrounding area of the site of occurrence
- Convenient cleaning/maintenance, economical and can add deodorizing function
- Compact in size
- Improvised airflow with curved vanes
- Optimum mist collection efficiency with entry cone
- Split casing consents to easy maintenance
- Maximum filtration capacity by means of drum and case gap
- Energy efficient
- Silent operation
- Effective combining aesthetics and functionality
- Work zone filled with pure air
- Easy to integrate with wide machine tool range through Aesthetics
- Clean oil is backed to machine
- Automatic removal of oil mist from source
- Centrifugal impaction allows efficient collection of oil mist
Applications :
- Automotive Industry
- Rubber Processing Unit
- Aerospace Component Manufacturing Process
- Heavy Engineering Industries
SPECIFICATION :
DESCRIPTION |
SPECIFICATION/AIR FLOW |
MOTOR |
SIZE IN MM |
INLET |
WEIGHT |
NOISE |
DSLC 550 |
550m3/hr |
0.25KW |
350L*350w*400H |
100MM |
22Kg |
63dBA |
DSLC 950 |
950m3/hr |
0.55KW |
400L*400W*470H |
150MM |
34Kg |
65dBA |
DSLC 2850 |
2850m3/hr |
1.5KW |
455L*455W*660H |
200MM |
45kg |
68dBA |
|

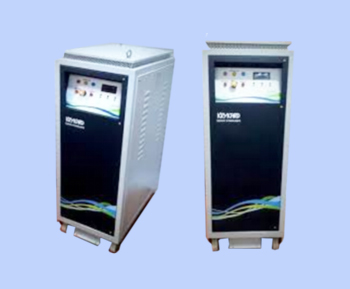

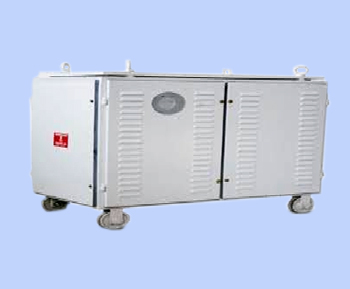

Stabilizers And Transformer
We are dealing in Krykard make Stabilizers which is available as per below :
- 1 phase Servo Stabilizers
- 2 phase Servo Stabilizers
- 3 phase input / 1 phase output Servo Stabilizers
- 3 phase Residential Servo Stabilizers
- Isolation Transformer
- Stabilizers with builtāin Isolation Transformers
- Step up / Step down Transformers

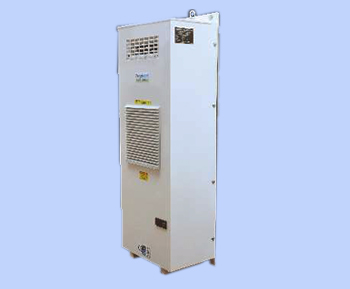

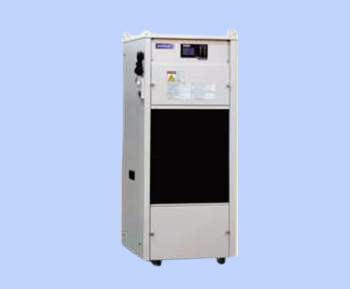

Panel AC And Chiller
DRASLA TECHNOLOGY is dealing in Panel AC and chiller which is available in below range :
For Panel AC:
- Cooling output : 250 watts to 9000 watts
- Maximum Operating temp.: 50 degree
For Chiller :
Capacity : 1 TR to 20 TR available in various Types :
- Cooling output : 250 watts to 9000 watts

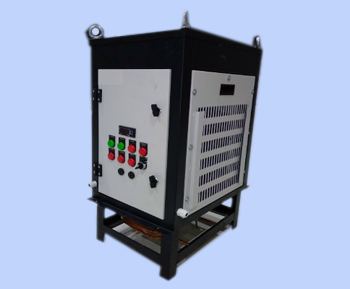

- Oil Chiller
- Spindle Chiller
- Water chiller
- Coolant chiller

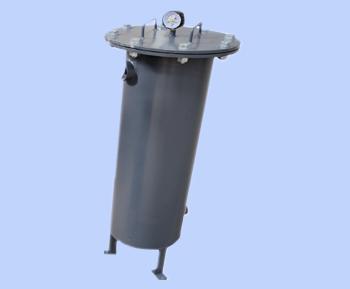

Cartridge Filter
A cartridge filter is a piece of tubular filtraton equipment that can be used actoss various industries for an accay of filtration requirements. A carteidge is encased within a housing or a casing and used to remove unwanted particles, pollutants, and chemicals form liquids
|
